Commercial Paint Equipment

Binks2 quart pressure cup line allows applicators the efficiency and productivity of a pressurized vessel in a container that is portable and easily to handle. These units are ideal for small jobs, touch-ups, or any application where the painter needs to transport the pressure vessel with them. This unit is the most ergonomic of the pressure cup line and offers a user-friendly alternative to larger pressure pots.

Binks 2-quart pressure cup line allows applicators the efficiency and productivity of a pressurized vessel in a container that is portable and easily to handle.  These units are ideal for small jobs, touch-ups or any application where the painter needs to transport the pressure vessel with them.  This unit has a larger opening at the top which helps with loading of material and is also available with optional liners to aid with clean up and change outs.

Liners: 80-356 (12 Liners per case)

Binks 2-quart pressure cup line allows applicators the efficiency and productivity of a pressurized vessel in a container that is portable and easily to handle.  These units are ideal for small jobs, touch-ups, or any application where the painter needs to transport the pressure vessel with them.  The model 80-601 is outfitted with an oscillating agitator for spraying coatings that contain particulates. This unit has a larger opening at the top which helps with loading of material and is also available with optional liners to aid with clean up and change outs.

Liners: 80-356 (12 Liners per case)

Binks 2-quart pressure cup line allows applicators the efficiency and productivity of a pressurized vessel in a container that is portable and easily to handle.  These units are ideal for small jobs, touch-ups, or any application where the painter needs to transport the pressure vessel with them.  The model 80-651 is outfitted with a rotary agitator for spraying coatings that contain particulates. It also features dual regulators enabling control over both fluid and gun pressure settings.  This unit has a larger opening at the top which helps with loading of material and is available with optional liners to aid with clean up and change outs.

Liners: 80-356 (12 Liners per case)

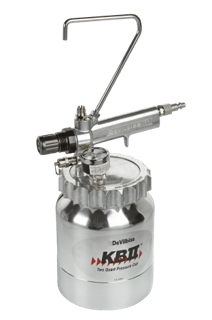

KB II Series 2-quart cups feature a “pistol grip” carrying handle, and right- or left-handed design for comfort and ease of handling. An easy-open lid and wide cup mouth allow for fast filling and clean-up. KB II Series cups also feature a solvent-resistant check valve, a 0-30 psi air gauge, and a wide base for greater stability. KB II Cups are supplied with disposable cup liners, which reduce clean-up and solvent use. The unique lid liner also protects the underside of the lid, preventing check valve failures.

This cup is also available with stainless steel construction for use with waterborne coatings.  Part #: KB-545-SS

Liners: KK-5051 (20 Liners per case)

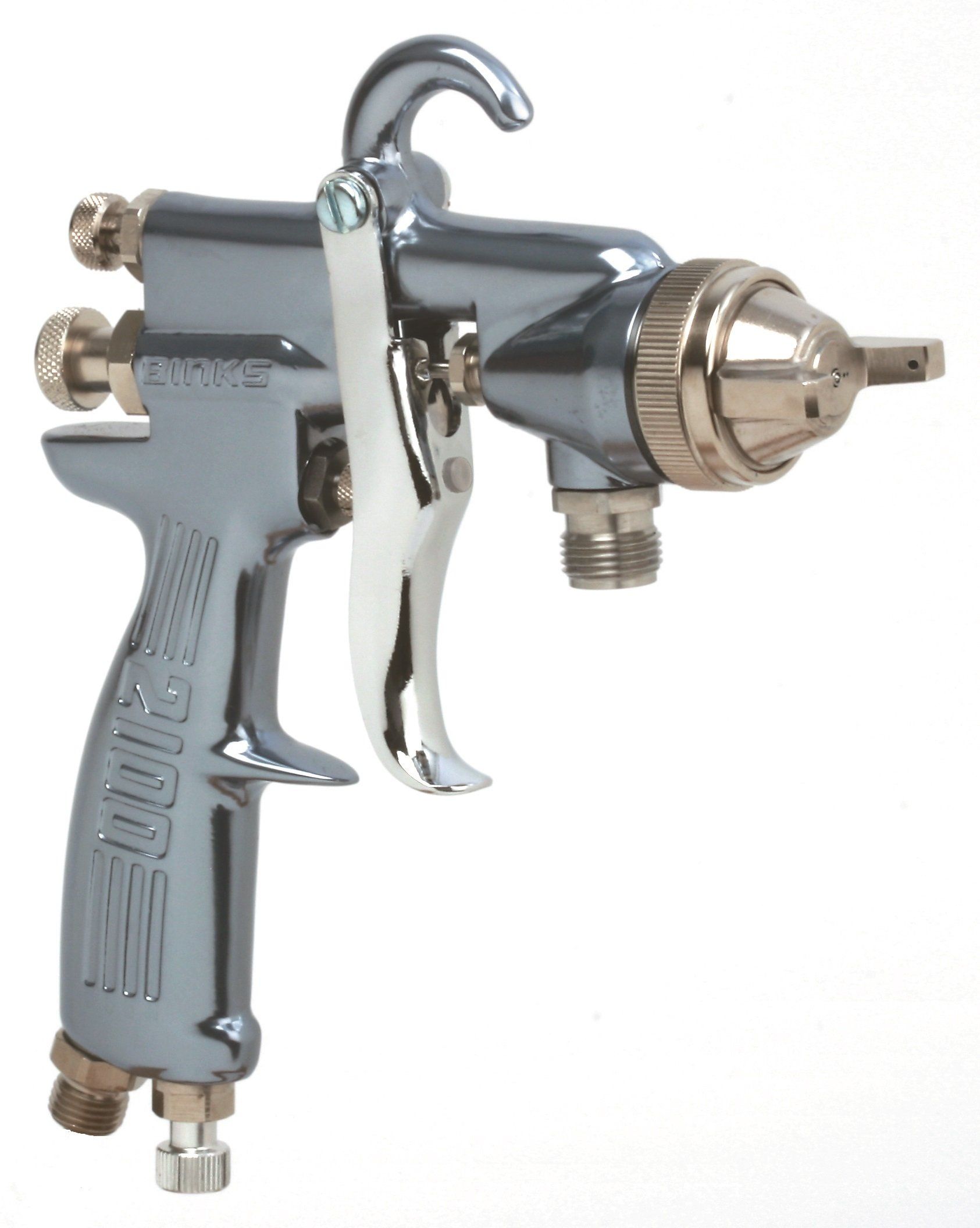

The successor to the iconic 2001 gun, the 2100 spray gun is a durable, full sized gun that is comfortable, well balanced, and easy to use. A specially designed grip measurably improves operator control, balance, and spray quality. The 2100 gun will spray all types of conventional coatings, including those with high solids. This model also comes standard with an inlet air adjusting valve (cheater valve) built into the handle.

Name: Binks 2100 Conventional Spray Gun

Model (Part #): 2101-XXXX-X (customer chooses type and setup)

Gun Category: Conventional

Gun Type: Manual

Fluid Passages: Stainless Steel

Fluid Inlet: 3/8″ NPS (M)

Air Inlet: 1/4″ NPS (M)

Feed Type: Pressure feed, Siphon feed

Gun Repair Kit: 6-229

Tip Sizes (mm): 0.46, 0.70, 0.86, 0.110

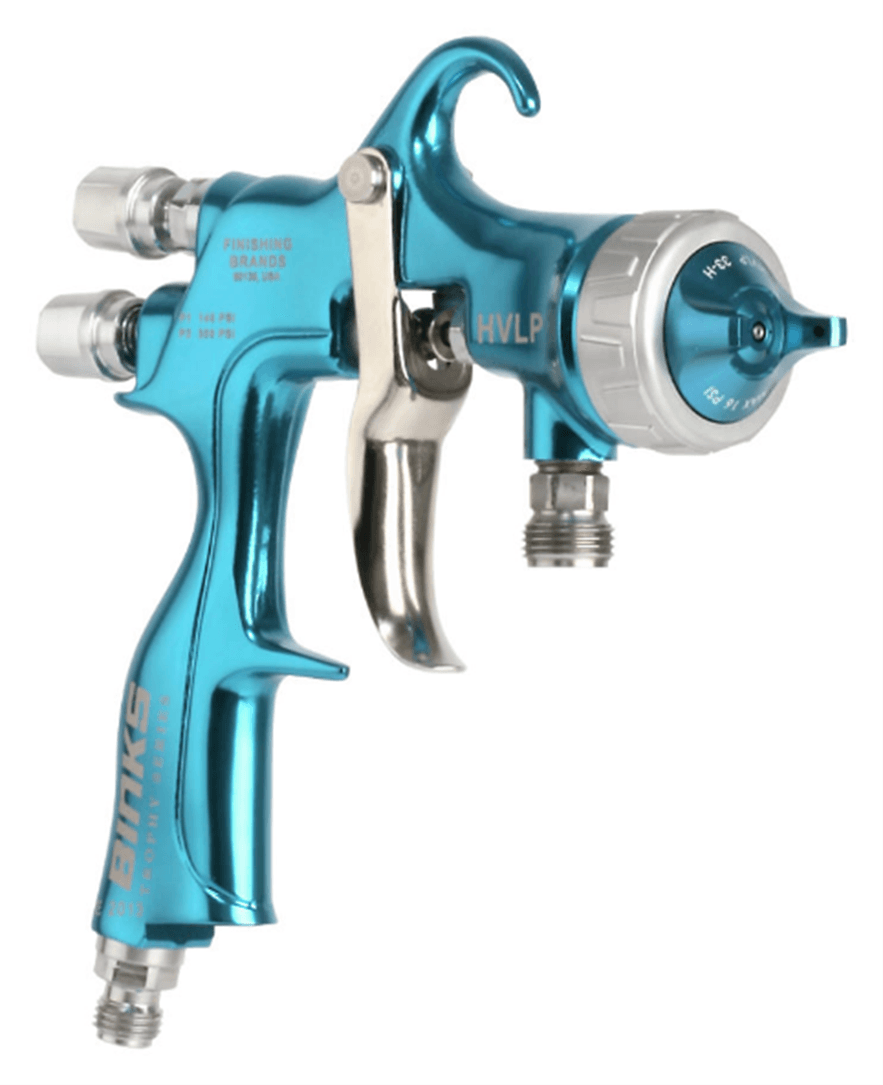

Binks’ newest offering to the spray gun world is the Trophy series of spray gun technology. Superior finish characteristics, comfortable, durable and stable design, excellent transfer efficiency and finish – everything that makes up the Binks Trophy gun. Trophy guns are available in full size and touch up models as well as conventional, LVMP and HVLP variations configured with pressure, siphon or gravity fed fluid inlets.

Name: Binks Trophy Series Spray Gun

Model (Part #): 2465-XXXX-XXXX & 2466-XXXX-XXXX

Gun Category: Conventional, LVMP & HVLP

Gun Type: Manual

Fluid Passages: Stainless Steel

Fluid Inlet: 3/8″ NPS (M)

Air Inlet: 1/4″ NPS (M)

Feed Type: Pressure feed, Siphon feed& Gravity feed

Gun Repair Kit: Multiple kits available

Gun Construction: Anodized Forged Aluminum

Tip Sizes (mm):0.50, 0.85, 1.0, 1.2, 1.4, 1.6, 1.8, 2.0, 2.2, 2.6

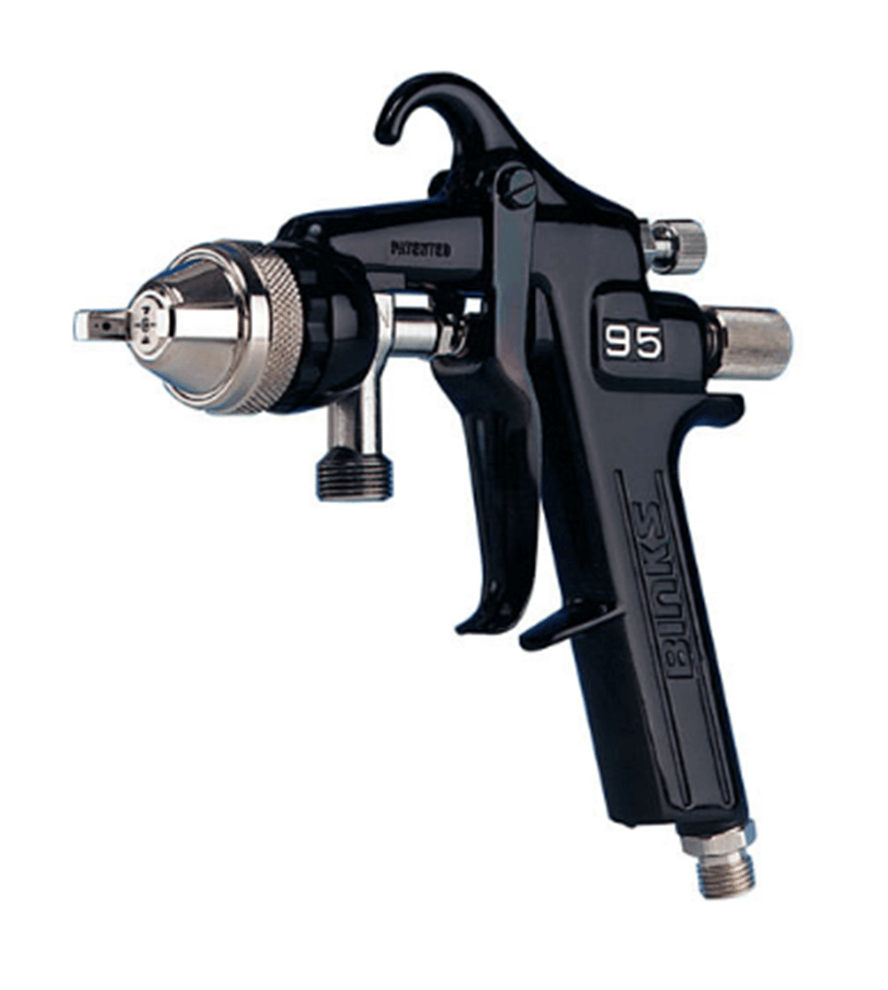

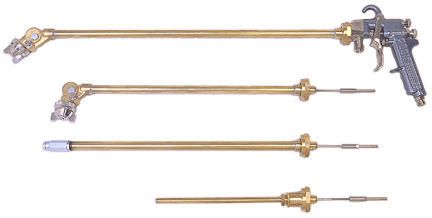

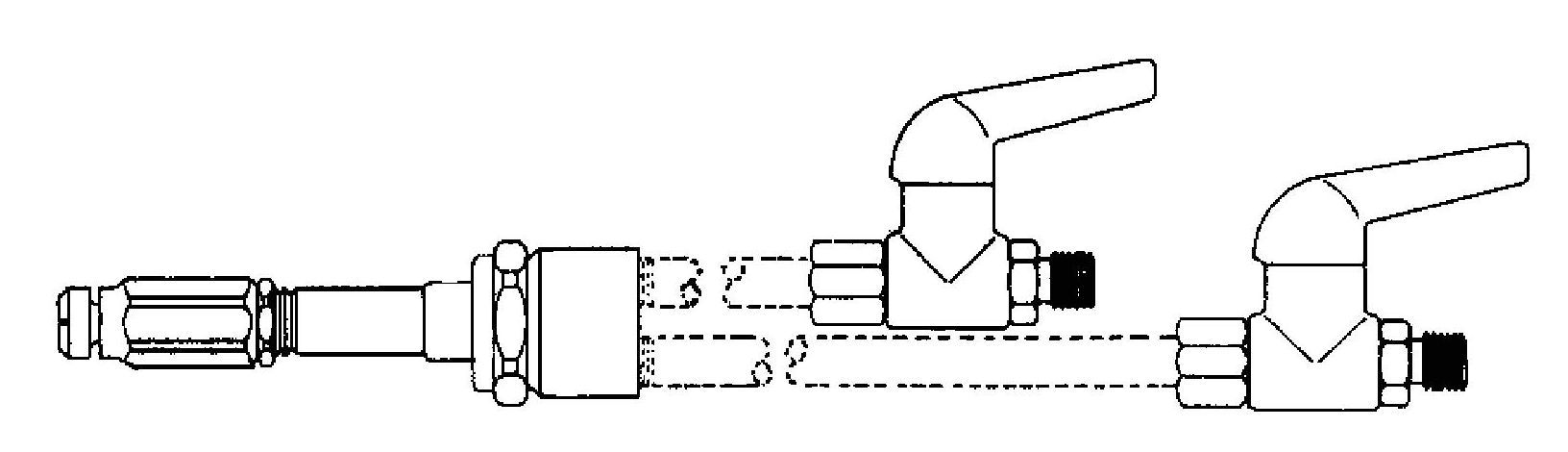

The Binks Model 95 gun is a high production spray gun designed to apply most coatings. It provides superior performance and efficiency. The spray gun features all stainless-steel fluid passages, 60 Series air and fluid nozzles, an extra wide trigger, large control knobs, and an ergonomic forged aluminum body. Available in a variety of manual and automatic models, the Model 95 is ideal for industrial applications, touch-up spraying and automated spray systems. Nozzle extensions are also available.

Name: Binks Model 95 Conventional Spray Gun

Model (Part #): 6121-XXXX-X (customer chooses type and setup)

Gun Category: Conventional

Gun Type: Manual

Fluid Passages: Stainless Steel

Fluid Inlet: 3/8″ NPS (M)

Air Inlet: 1/4″ NPS (M)

Feed Type: Pressure feed, Siphon feed

Gun Repair Kit: 54-3577

Tip Sizes (mm): 0.46, 0.70, 0.86, 0.110

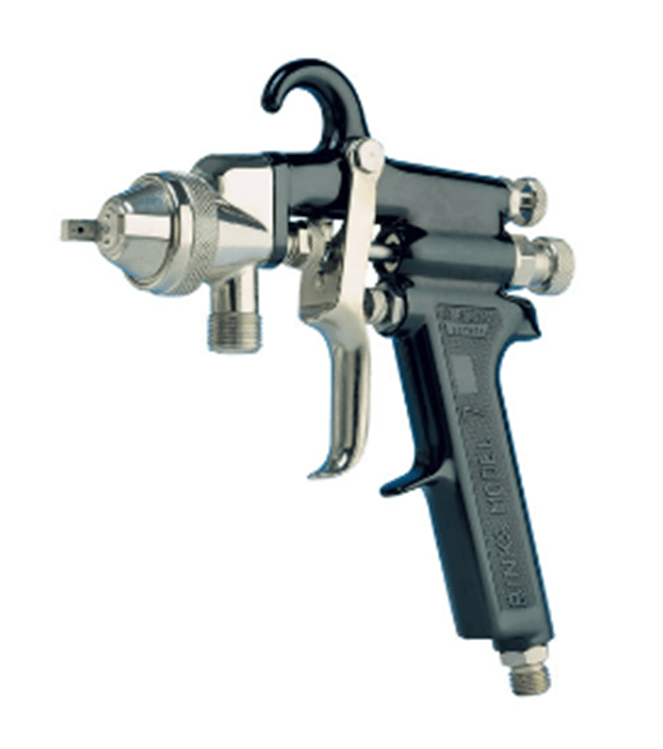

The Model 7 spray gun is used for all types of spray application, but is ideally suited towards use with siphon cup systems. It has been a part of the Binks product lineup for many years and is a well-built, reliable gun.

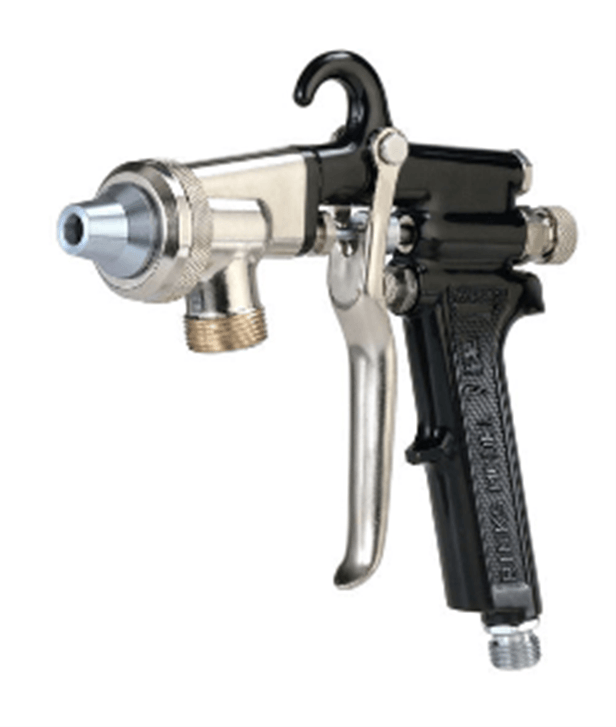

The 7E2 variation of this gun is designed for spraying heavy bodied fluids such as mastics, roof coatings, fireproofing and similar materials. The 7E2 has extra-large fluid passages in a plated drop-forged brass head and features adjustable floating needle valves. It uses a hardened steel four finger trigger and is controlled at the back of the spray gun for a non-adjustable spray pattern.

Name: Binks Model 7& 7E2 Conventional Spray Gun

Model (Part #): (Model 7) 6100-XXXX-X& (7E2) 6102-XXXX-X

Gun Category: Conventional

Gun Type: Manual

Fluid Passages: Stainless Steel

Feed Type: Pressure feed, Siphon feed (Model 7 only)

Construction: Drop forged aluminum body

Model 7 Fluid Inlet: 3/8″ NPS (M)

Model 7 Air Inlet: 1/4″ NPS (M)

Model 7E2 Fluid Inlet: 3/4” NPS (M)

Model 7E2 Fluid Inlet: 3/8” NPS (M)

Model 7 Gun Repair Kit: 6-188

Model 7E2 Gun Repair Kit: 6-224

Model 7 Tip Sizes (mm): 0.70, 0.86

Model 7E2 Tip Sizes:0.187, 0.250, 0.312, 0.375

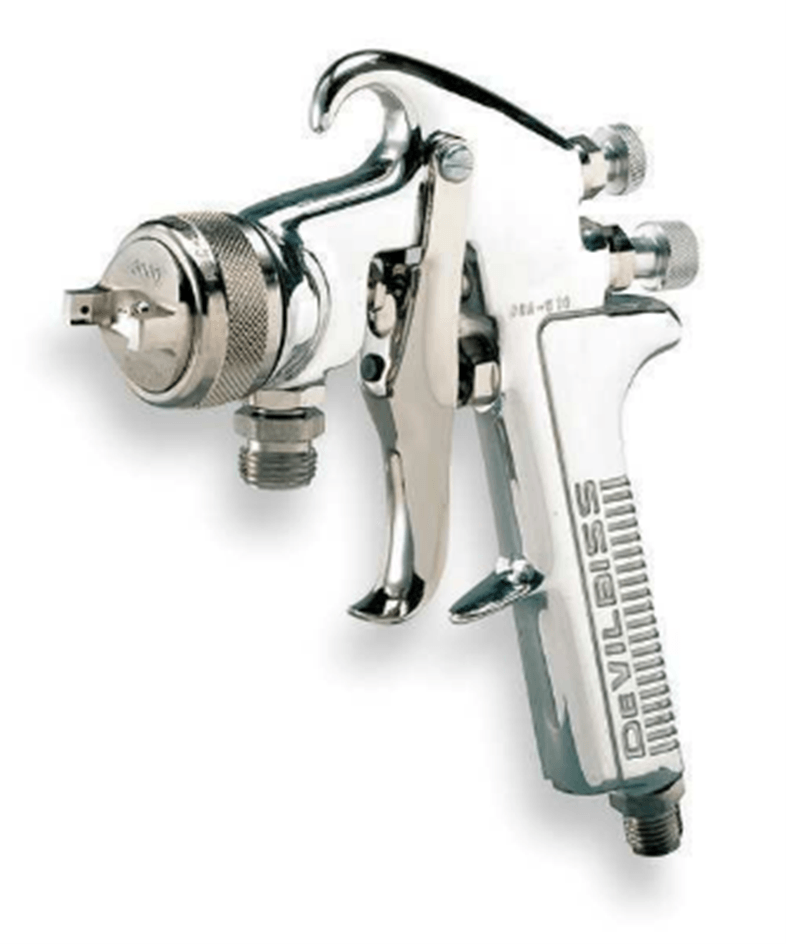

Setting industry standards for high-production performance, the JGA manual spray gun also offers the comfortable fit and feel operators prefer. An economical option for waterborne and solvent-based material applications, the JGA air spray gun delivers the quality results you need for tough applications.

Name: JGA Standard Size Manual Spray Gun

Model (Part #): JGA-510-xxxx (user selects tip/air cap)

Gun Category: Conventional

Gun Type: Manual

Fluid Passages: 300 grade stainless steel

Fluid Inlet: 3/8″ NPS (M)

Air Inlet: 1/4″ NPS (M)

Weight: 21.6 oz. (613 gr)

Construction: Drop forged aluminum

Feed Type: Pressure feed, Suction feed (EX)

Gun Repair Kit: KK-4987-2

Tip Sizes (mm): 2.8 (C), 2.2 (D), 1.8 (E), 1.4 (FF), 1.1 (FX), 0.9 (GX)

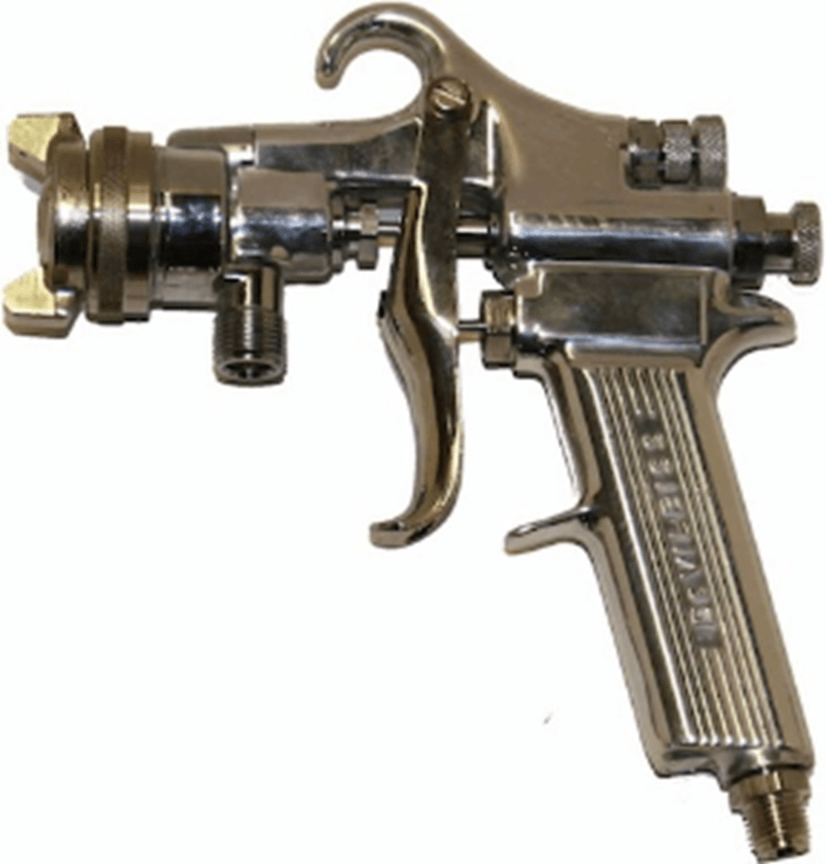

Combining a drop forged aluminum body with a forged removable spray head, the MBC-510 spray gun is ideal for applications that require maximum output and quick changeovers. Removable spray head allows for reduced downtime on nozzle combination changeovers. MBC spray guns have nickel-plated brass fluid passages and 400-grade stainless steel fluid tip and needle.

Name: MBC Conventional Spray Gun

Model (Part #): MBC-510-xxxx (user selects tip/air cap)

Gun Category: Conventional

Gun Type: Manual

Fluid Passages: Nickel Plated Brass

Fluid Inlet: 3/8″ NPS (M)

Air Inlet: 1/4″ NPS (M)

Weight: 27 oz (768 gr) with air cap and ring

Construction: Drop forged aluminum

Feed Type: Pressure feed, Suction feed (EX)

Gun Repair Kit: KK-4058-1

Tip Sizes (mm): 2.8 (C), 2.2 (D), 1.8 (E), 1.4 (FF), 1.1 (FX), 0.9 (GX)

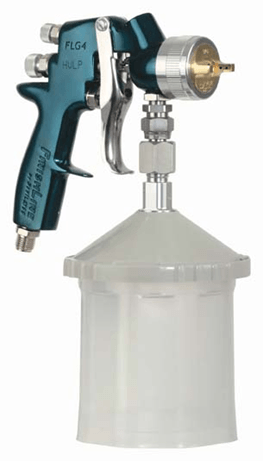

The FLG4 gun works with a wide variety of coatings to provide a professional, fine, factory finish. Waterborne compatible, all parts are anodized aluminum & stainless steel. Siphon and gravity fed models features DeKups™ disposable cup system. Air caps & nozzles provide a high quality finish; ergonomic handle reduces stress.

This gun is available in both conventional and HVLP variations.

Name: FLG4 Conventional& HVLP Spray Gun

Model (Part #): FLG-XXX-XXX (Customer picks type and setup)

Gun Category: Conventional& HVLP

Gun Type: Manual

Fluid Passages: Anodized Aluminum

Fluid Inlet: 3/8″ NPS (M)

Air Inlet: 1/4″ NPS (M)

Weight: Varies by gun type

Construction: Forged aluminum

Feed Type: Pressure feed, Suction feed & Gravity feed

Gun Repair Kit: FLG4-488-K

Tip Sizes (mm): 2.2 (0.086), 1.5 (0.059), 1.3 (0.051)

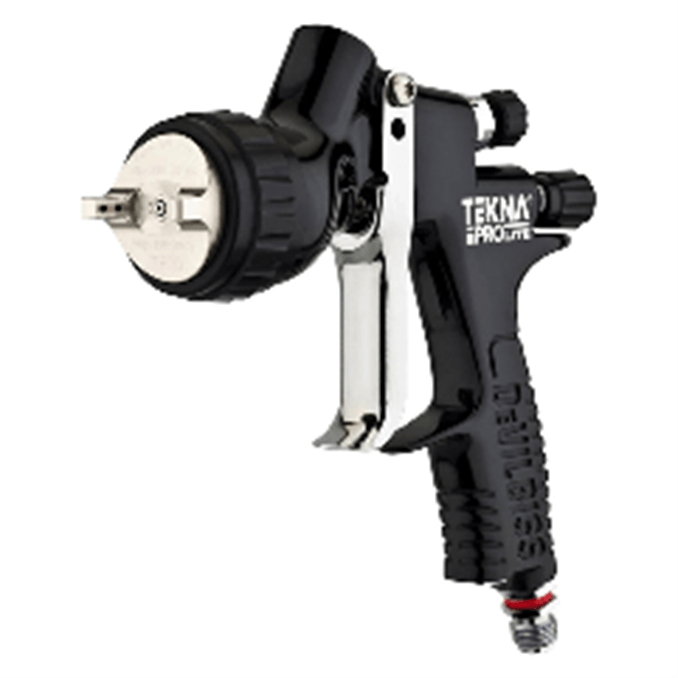

Devilbiss’ years of research and development have culminated in the Tekna Pro-Lite industrial/automotive spray gun. This gun is coated both inside and out with an adhesion resistant non-stick coating which helps to make cleanup a breeze. The Tekna is designed for use with all types of coatings, to include waterborne, and is best suited for applications where transfer efficiency is key, and the absolute best finish is desired. This spray gun is available in HVLP and High Efficiency variations.

Name: Tekna Pro-Lite Spray Gun

Model (Part #): PRO-XXX-XXX (customer chooses type and setup)

Gun Category: HVLP & High Efficiency

Gun Type: Manual

Fluid Passages: Non-Stick Design

Fluid Inlet: 3/8″ NPS (M)

Air Inlet: 1/4″ NPS (M)

Weight: Varies with model

Feed Type: Pressure feed, Gravity feed

Gun Repair Kit: PRO-470

Tip Sizes (mm): 1.0, 1.2, 1.3, 1.4, 1.5
